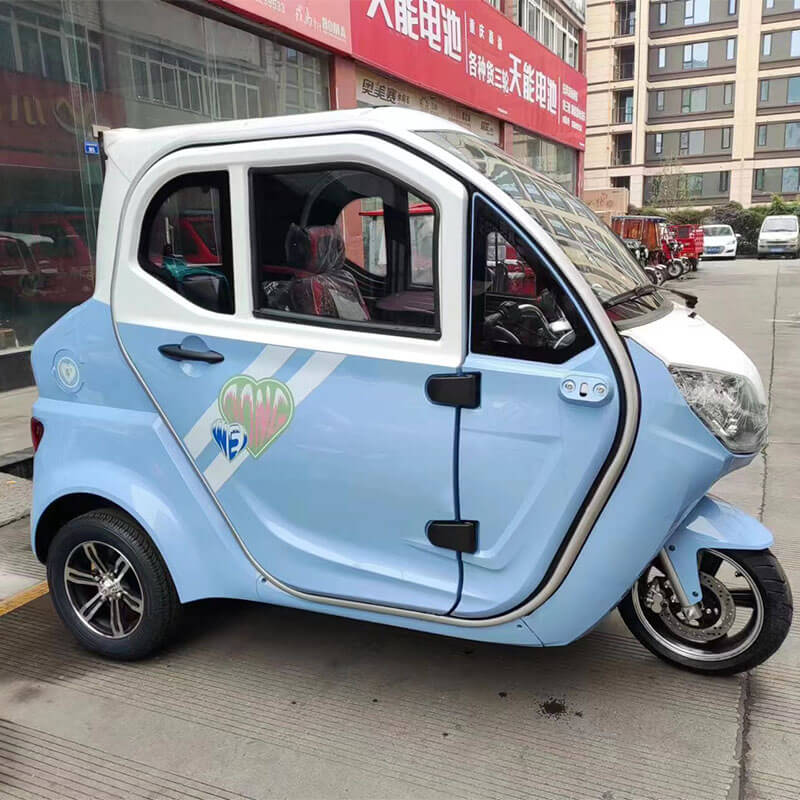

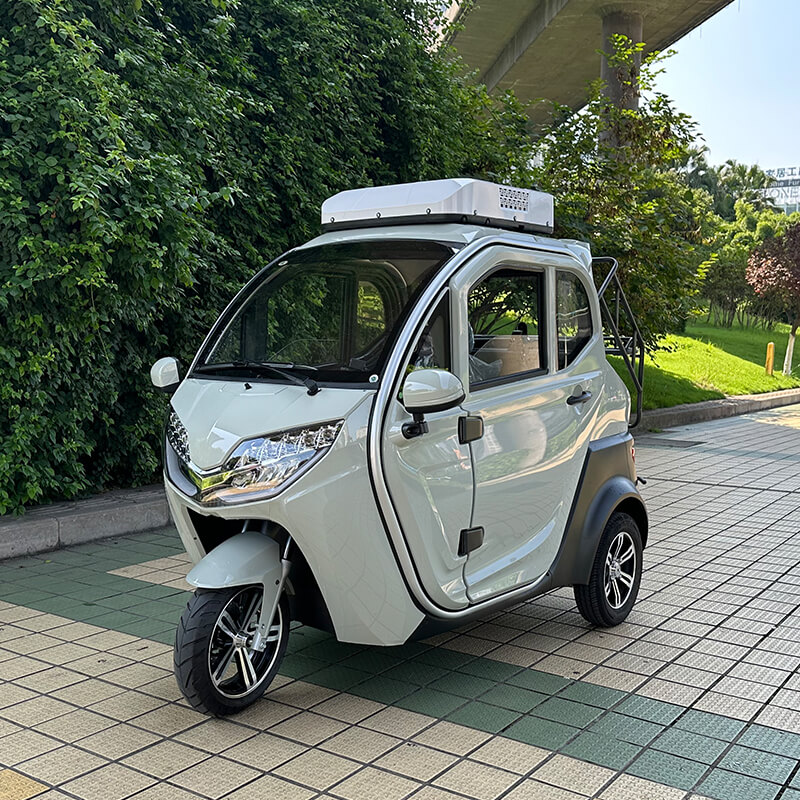

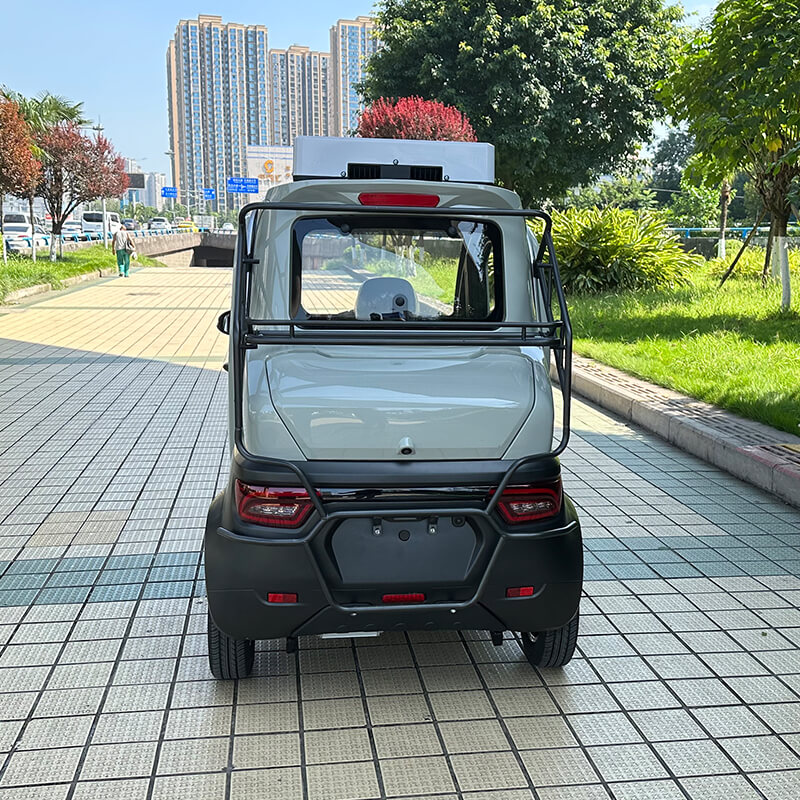

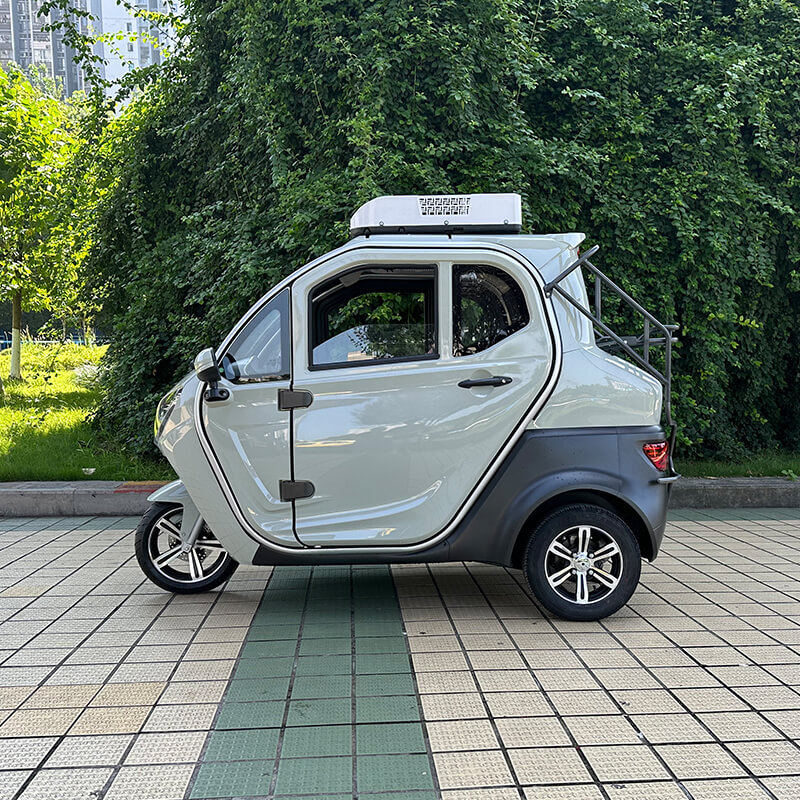

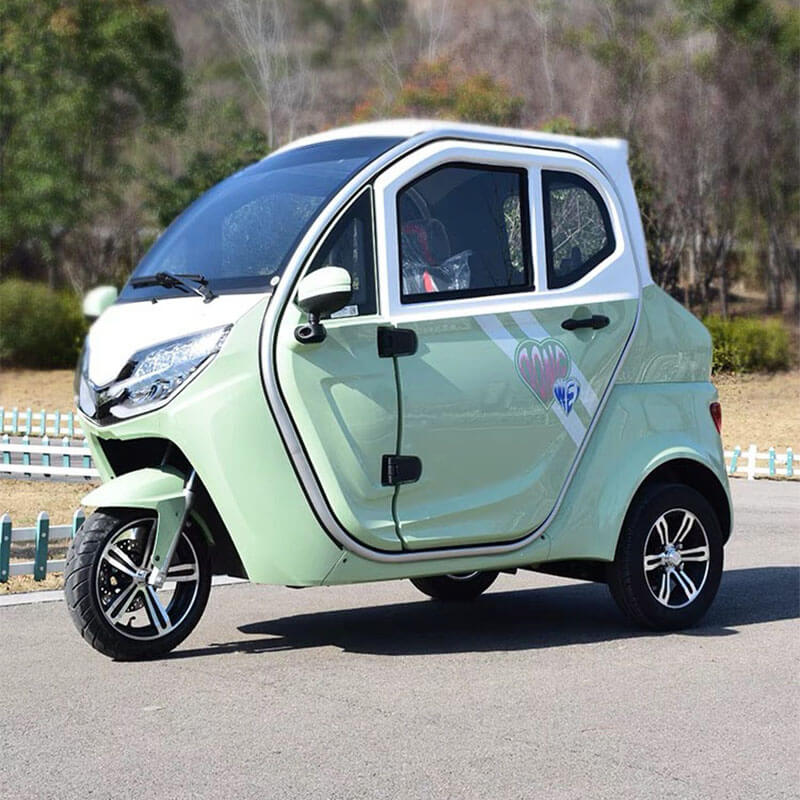

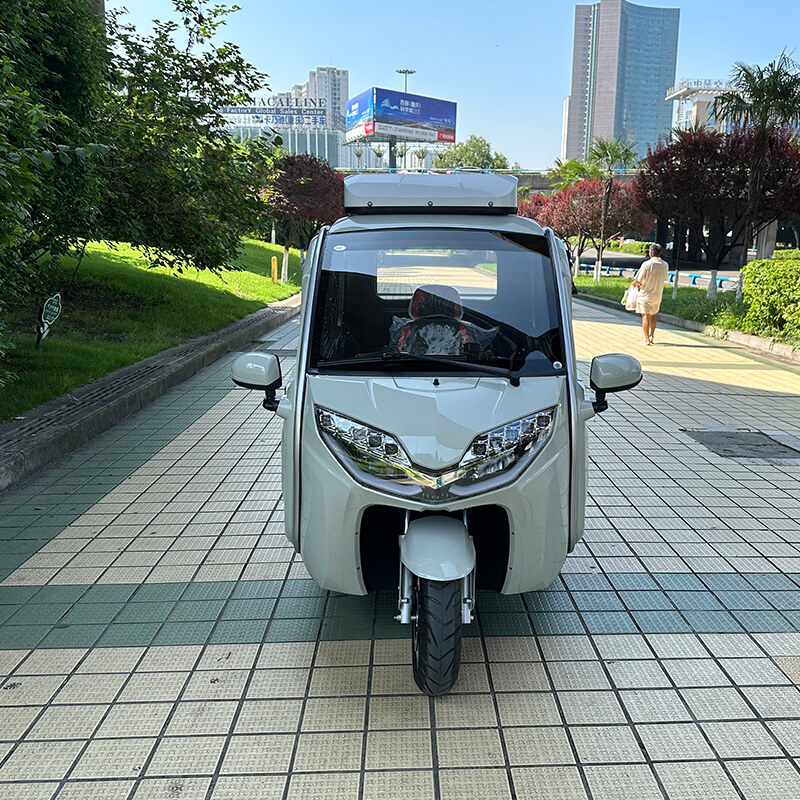

Electric tricycle factory 3000W motor 3 wheel scooter with air condition
- The new eagle-eye-shaped headlight is equipped with an LED light source
- Wrap-around cockpit design
- Anti-lock hydraulic disc brake system
- 1500W permanent magnet synchronous DC motor
1.LED light
The new eagle-eye-shaped headlight is equipped with an LED light source. The 10 lamp beads are full of technology and can illuminate farther at night. The brightness is greatly improved and has stronger penetrating power in foggy weather.
2.Wrap-around cockpit design
Every aspect of electric vehicle is aimed at humanization.
Fully enclosed doors. once open the door, everything in sight,such as color driving instruments, multimedia entertainment controls, vehicle driving gear shifting, electric wipers and heaters, and many functional handlebar structures surrounding the driver, all within reach.
3.disc brake system
The vehicle is equipped with an anti-lock hydraulic disc brake system on both the front and rear wheels. The hand-foot cooperative braking structure, combined with large perforated brake discs, ensures sensitive and easy operation of the brakes.
4.1500W permanent magnet synchronous DC motor
The power system equiped with a 1500W permanent magnet synchronous DC motor and adopts CVT(Continuously Variable Transmission)to ensure linear and smooth power output without any jerks anytime. Excellent high-performance motor features strong performance,quickly acceleration response and climbing power. Top speed reaches 50km/h.
Model | FWD-Q3 |
Dimension(L*W*H) | 2425*1200*1675mm |
Instrument type | Multifunctional LCD instrument |
Maximum mass | 592kg |
Curb weight | 315kg |
Design speed | 52km/h |
Wheelbase | 1730mm |
Drving range | According to different batteries |
Motor power | 60V 1500-3000w |
Shock absorbing system | Front straight hydraulic/rear spring |
Steering type | handle |
Brake type | Disc brake |
Brake control | hand brake/foot brake |
Tire | FR&RR 130/60-13&135/70R12 |
Wheel hub | Aluminum alloy |
Charger time | 8-10 hours |
Seats | 3 |
Battery | 73/80/86/100/120/150Ah (Lead acid, lithium battery optional) |
Climbing | 20-30° |
Anti-theft function | Electronic remote control anti-theft device |
Tail box size | 740*250*430MM |
